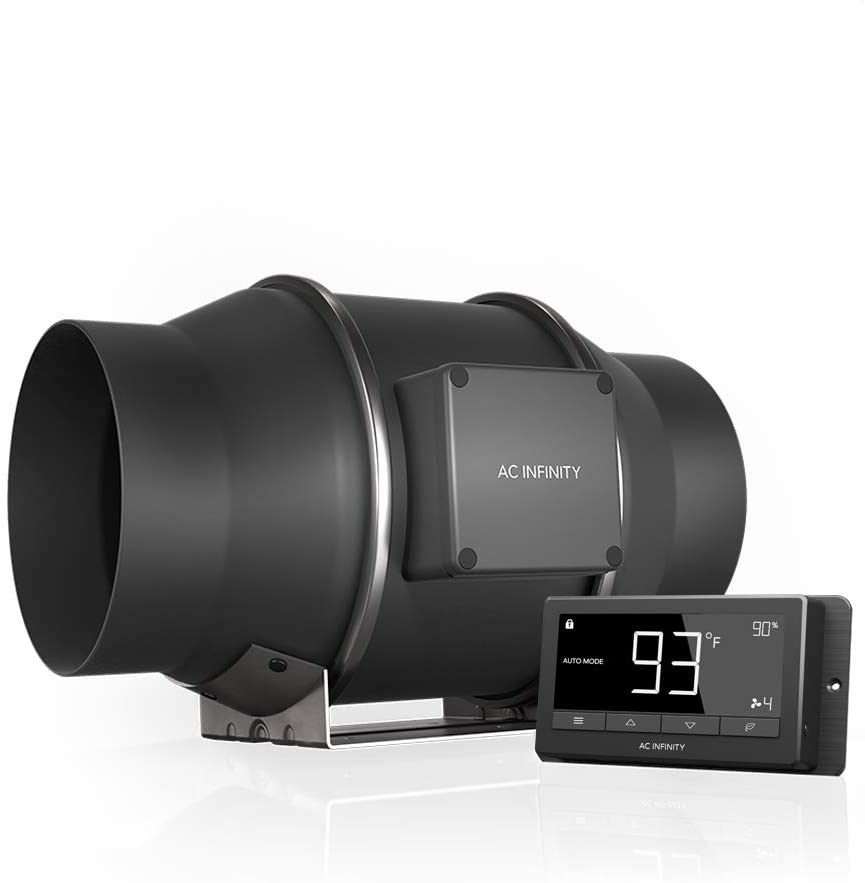

An inline duct fan designed to quietly ventilate grow tents, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets.
The new CLOUDLINE series contains a cutting-edge Electronically Commutated (EC) motor, controlled using precise electronic pulses and smart programming. This enables the inline fan to operate considerably quieter and reach low speeds without generating noise or heat. The EC motor is also twice as energy-efficient and can save up to 40% in energy costs, paying for itself in the long run.
Smart Programming T-series models include a programmable controller with precise temperature and humidity sensors located on the 12-foot corded probe. | Quiet PWM Motor Each system utilizes a DC or EC motor that is controlled using Pulse Width Modulation (PWM), which is quieter and more energy-efficient than AC fans. | Mixed-Flow Design Featuring a mixed flow design, the fans maintain peak performance in high static-pressure environments. Ingress-protected against dust and liquids. | Plug and Play The complete kit includes the inline fan unit, controller, user manual, and everything needed to mount the fan and power it through an outlet. |
- Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
- Intelligent controller with temperature and humidity programming, fan speed control, timer, and alarm system.
- Mixed flow design combined with a PWM-controlled EC-motor for truly quiet and energy-efficient performance.
- The kit also includes a corded sensor probe, AC power plug, two duct clamps, and required mounting hardware.

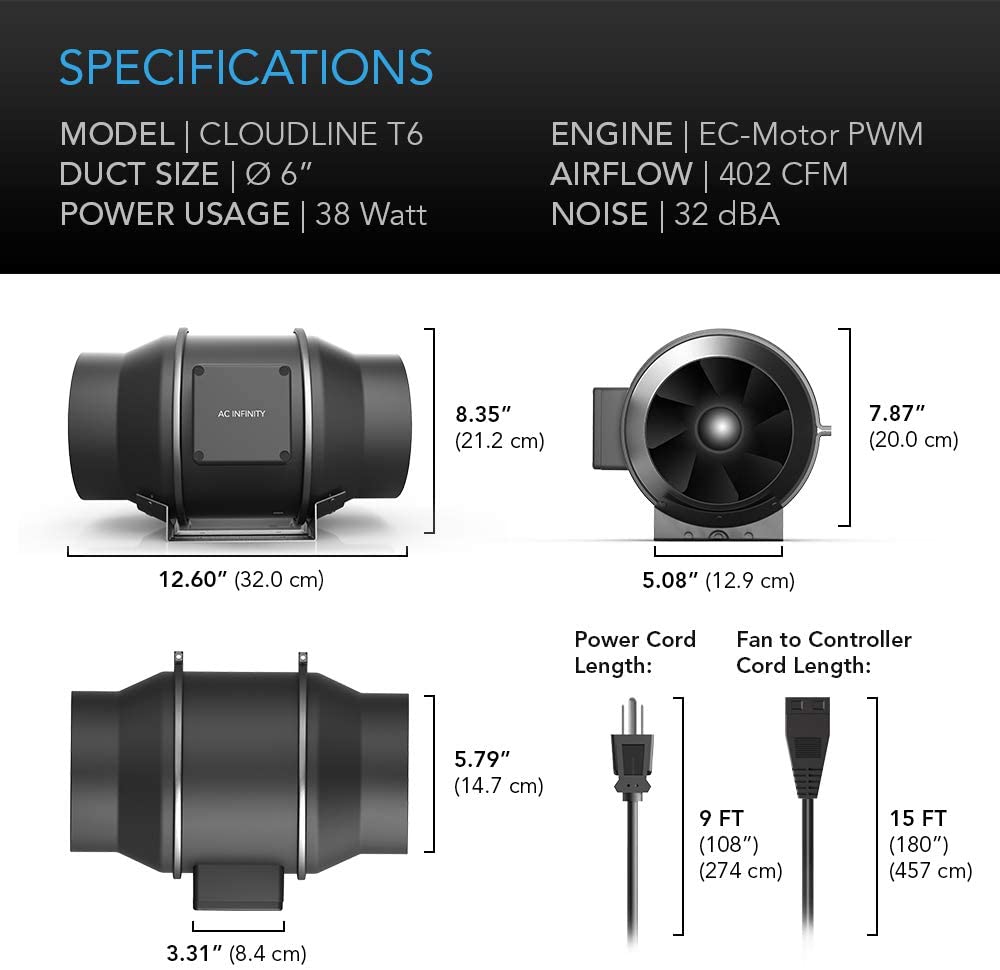

- Duct Size: 6” | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 402 CFM | Noise: 32 dBA | Bearings: Dual Ball
CONNECTING ADDITIONAL UNITS:

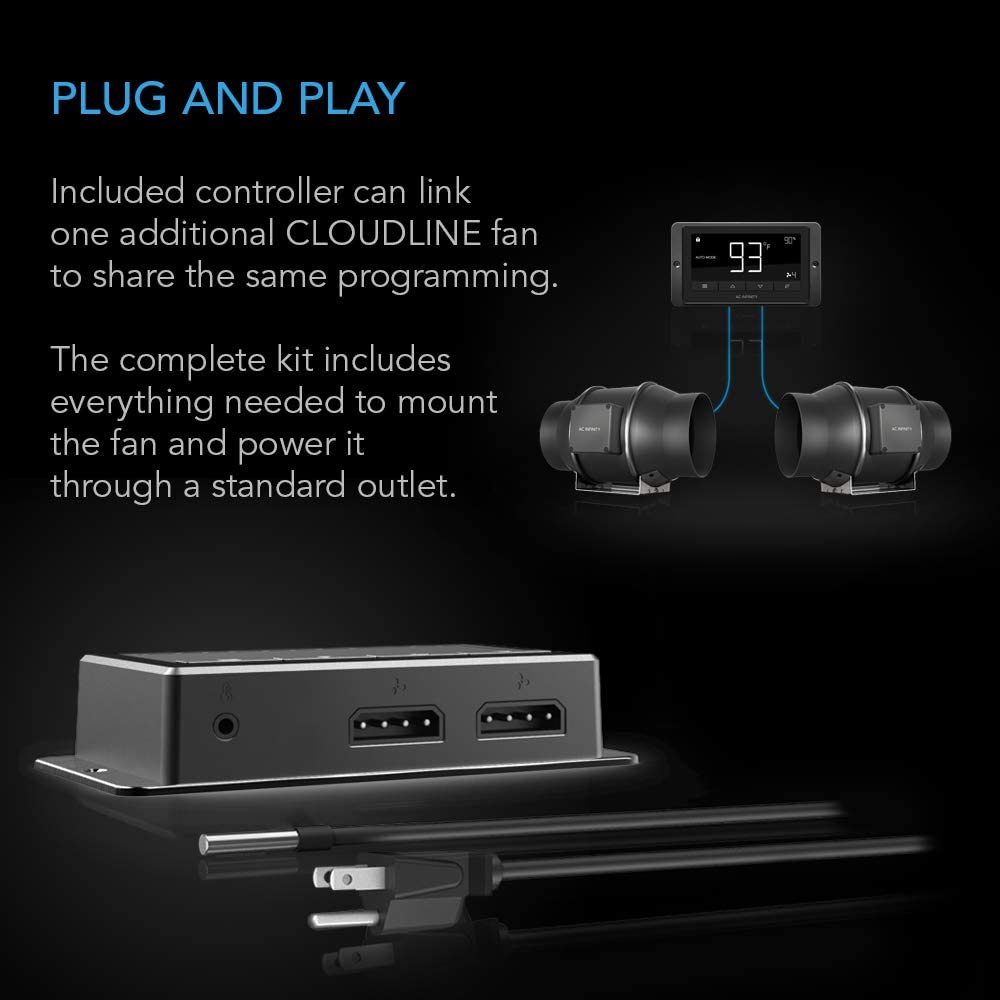

CLOUDLINE 4-Series A CLOUDLINE T4 plus CLOUDLINE S4 system can be linked to the same smart controller and used in conjunction for a total of 410 CFM airflow. This set-up is ideal for ventilating smaller grow tents and cooling AV rack cabinets. | CLOUDLINE 6-Series A CLOUDLINE T6 plus CLOUDLINE S6 system can be linked to the same smart controller and used in conjunction for a total of 804 CFM airflow. This set-up is ideal for large grow tents, AV closet cooling, and boosting airflow for HVAC projects. | MIX and MATCH The same controller can connect CLOUDLINE fans of different sizes, to share the same programming. For example, an exhausting CLOUDLINE T6 with a filter can share the same controller as an intaking CLOUDLINE S4, to balance static pressure. |
